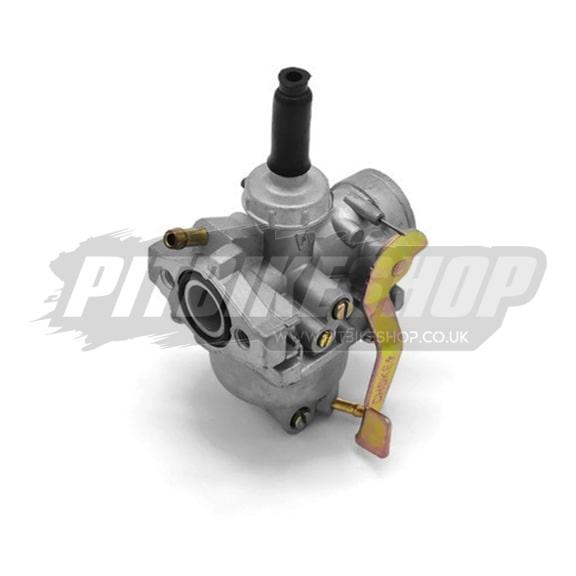

PZ14Q Carburettor

Description

PZ14Q 14mm carb.

2 bolt flange-type intake.

Main jet size – TBC
Pilot jet size – TBC
Hole spacing on the flange to the motor – 32mm
Inner diameter hole size on the flange to the motor – 14mm
Venturi diameter – 12mm

Please note: Your air filter will need to have a 28mm opening.

Main jet type – TBC
Carburettor model – PZ14Q

Will typically fit 50cc to 90cc engines.

Used on: Honda Z50, Z50A, Z50R, Z50RS, K3, K2, K1, K0, CRF, XR 50, CRF50, XR50
